SkyDavit arm

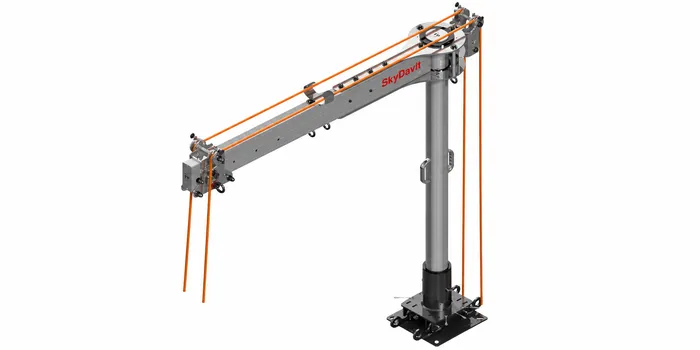

SkyDavit Arm from Fallprotec is a demountable davit arm for hanging work during maintenance and cleaning of façades. The lightweight design can be removed after completion of the work, while the fixed bases remain along the building’s roof edge for future use.

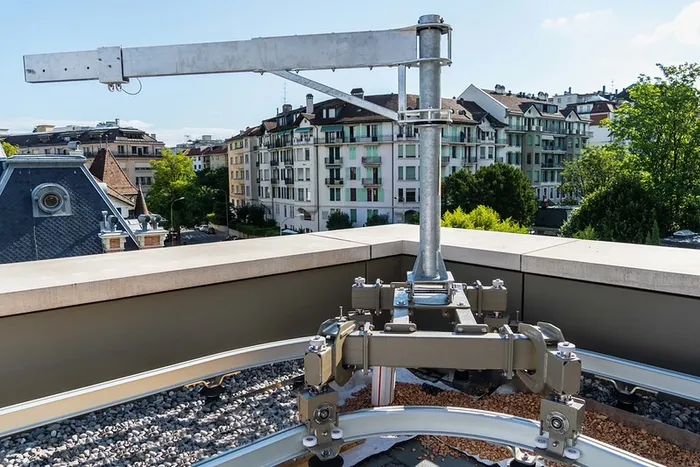

SkyDavit consists of a rotating arm and aluminum mast that is connected to permanently installed bases. The system can be used by repair technicians as well as together with the RopeClimber chair or the RopeClimber work basket for one person. Separate anchoring points are available for rigging ropes and safety ropes. The davit arm can be tilted at the base for safer and more ergonomic mounting. Bases are available in various heights and designs and can be mounted on a roof, wall, or at a guardrail.

Areas of use

SkyDavit Arm is used for repair work and suspended access during facade maintenance at airports, hospitals, commercial buildings and high-rise buildings, among other places. The system can also be used for work in courtyards, atriums and confined spaces.

Specification

• Arm: Rotating aluminum arm
• Mast: Aluminium
• Adapter and base: Steel
• Fixed bases: Stainless steel or galvanized steel
• Mounting base: Ceiling, wall or parapet
• Anchoring: Possibility of anchoring at the base with rope led via pulley wheels
• Anchoring points: Separate points for the safety rope and the safety rope
• Rescue: Anchoring points for rescue with the possibility of lifting and lowering
• Assembly: The arm can be tilted at the base
• Storage: The forearm is disassembled and stored after use
• Compatibility: Repairing techniques, RopeClimber chair and RopeClimber work basket for one person
• Base options: Several standard versions with different heights and mounting methods
• Customisation: Project-specific solutions can be developed
• Standard: EN 1808:2015, EN 795:2012 Type A, BS 8610:2017

FAQ

Does the SkyDavit Arm need to be permanently attached to the ceiling?

No. The davit arm itself is removable and can be stored when not in use. The fixed bases remain on the building and can be fitted with covers when not in use.

What equipment can be used with the SkyDavit Arm?

The system can be used by repair technicians as well as together with the RopeClimber chair or a RopeClimber work basket for one person.

Where can the bases for SkyDavit be mounted?

Depending on the design, the bases can be installed on the roof, the wall, or a parapet. Several standard options with different heights and mounting methods are available.
