SecuRail Pro for rope access

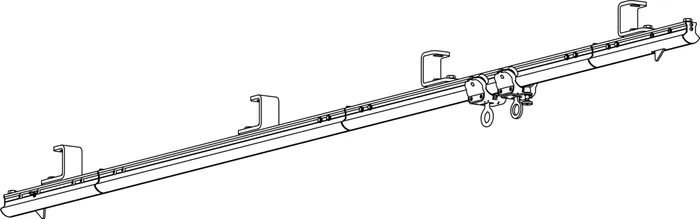

SecuRail Pro from Fallprotec is a rigid rail system for rope access and abseiling on facades. The lightweight anodised aluminium construction provides low deflection and can be adapted to the building's appearance for a discreet installation.

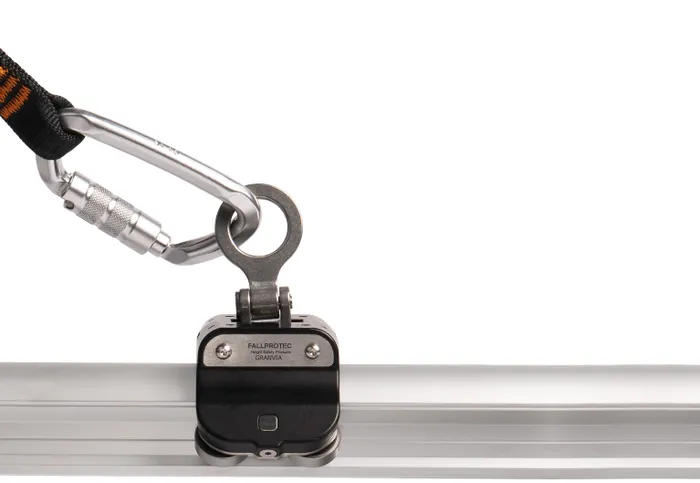

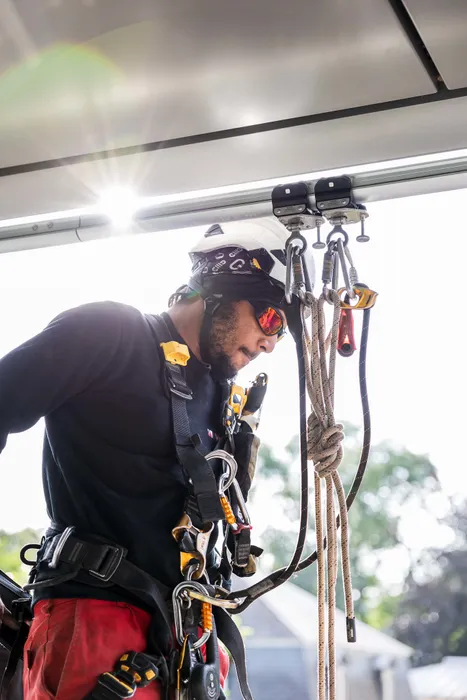

Each user is connected to the rail with two runners, one for suspension and a secondary runner. The runners roll along the rail on steel rollers for smooth movement and are equipped with a brake that makes it possible to lock the position for stable work. The system's components are made of stainless steel and anodised aluminium for good resistance to weathering. When used for abseiling, the maximum span between attachments is 1.5 metres.

Areas of use

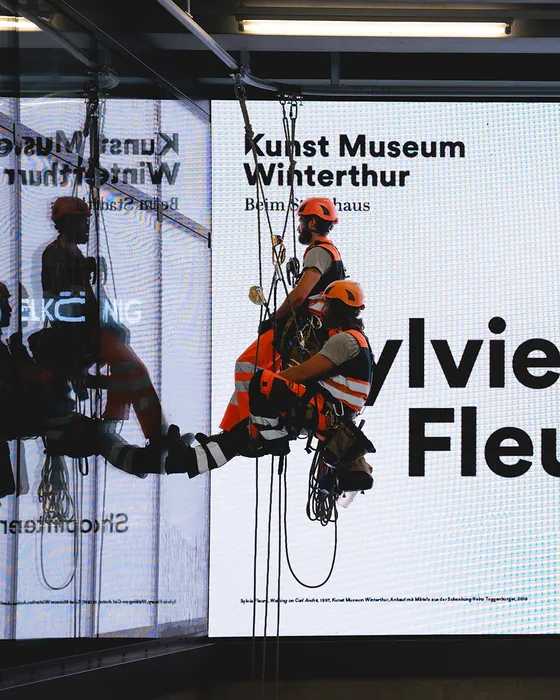

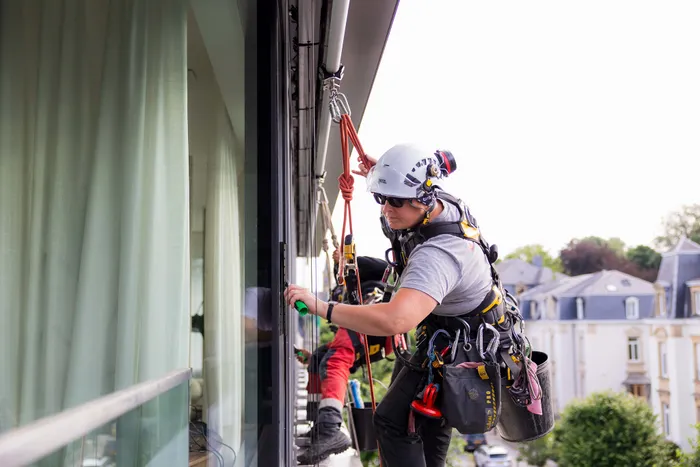

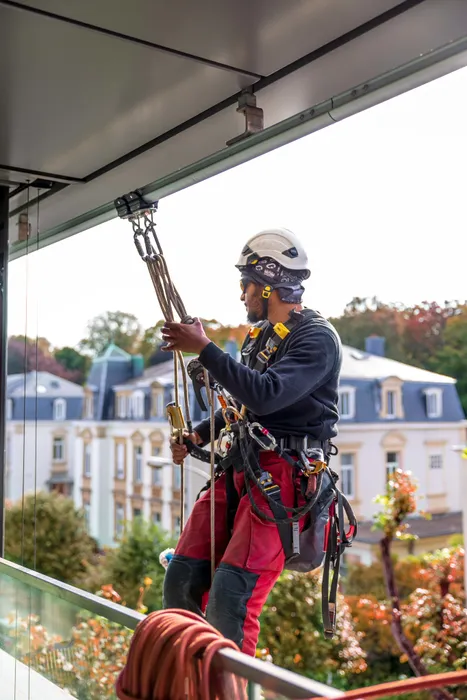

SecuRail Pro is used for rope work and rope access during facade maintenance. The system is intended for airports, hospitals, commercial buildings, shopping centres and high-rise buildings, among other places.

Specifications

• Number of users: Up to 2
• Runners per user: 2, one for suspension and a secondary
• Runner: Steel rollers and brake function
• Maximum span when rappelling: 1.5 m
• Weight: 1.7 kg/m
• Material: Anodised aluminium and stainless steel
• Deflection: Low
• Temperature variations: The construction handles expansion and contraction
• Surface treatment: Can be powder-coated in any RAL colour
• Customisation: Project-specific solutions can be developed
• Standard: EN 795:2012 Type D, CEN/TS 16415:2013, BS 8610:2017

FAQ

How is the user connected to SecuRail Pro during maintenance work?

Each user is connected with two runners, one for suspension and a secondary runner. Both run along the rail during operation.

Can the runner be locked in a specific working position?

Yes. The runner has a brake that allows it to be locked to provide the user with a stable position during work.

Can SecuRail Pro be adapted to the building's appearance?

Yes. The rail can be powder-coated in any RAL colour to better integrate with the design of the facade.
