Rotho Blaas

H-RAIL + SOLID

PATROL + SOLID is a rigid anchor lifeline system developed for rope access. The combination of high rigidity, high strength and a clamping plate anchorage system provides a stable solution for safe and efficient work at height.

The SOLID support is made from aluminium alloy, which provides low weight and simplifies both handling and installation. The support is available in heights from 400 to 1000 mm and can thus be adapted to different roof thicknesses and installation conditions. Together with the PATROL system, a solution specially adapted for rope access work is created.

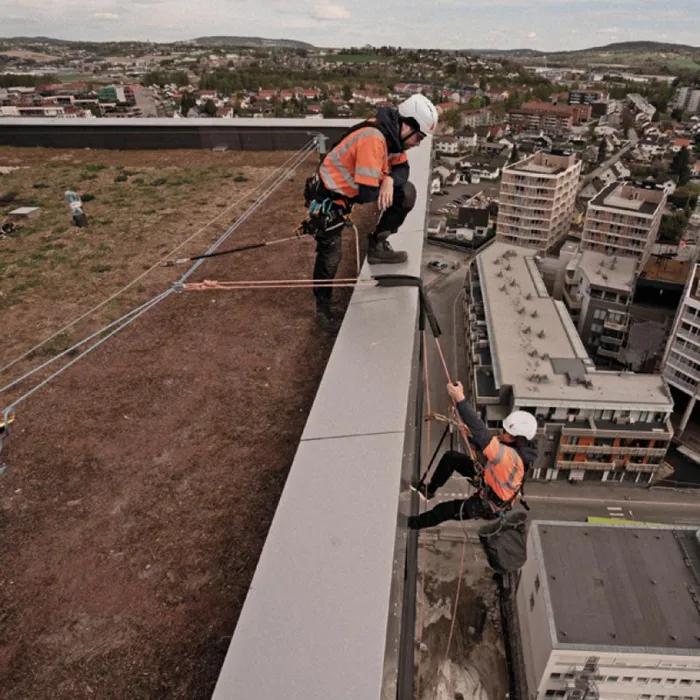

Areas of use

PATROL + SOLID is intended for rope access and rope work where rigid and stable support for the lifeline system is required. The various support heights make the solution adaptable to roofs with varying thicknesses.

Specifications

• Maximum number of users: 4
• Application: Repair work and rope access
• Support height: 400 to 1000 mm
• Support material: Aluminium alloy
• Features: High rigidity and strength
• Anchoring: Clamp plate system
• Installation: Lightweight components for easier handling and assembly
• Customisation: Different prop heights for varying roof thicknesses

FAQ

What are PATROL + SOLID used for?

The system is developed for rope access and rope work where a stable anchorage solution with high rigidity and strength is required.

What heights is the SOLID support available in?

The support is available in heights between 400 and 1000 mm to be able to adapt to different roof thicknesses.

Why is the SOLID support made of aluminium alloy?

Aluminium alloys give the components a low weight, which facilitates handling and installation while the support has the required rigidity and strength.
