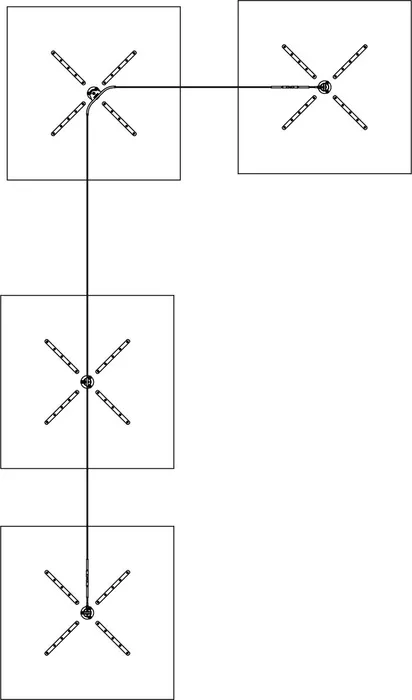

SecuRope Tevo Pro cable lifeline system on Unipost for green

SecuRope Tevo Pro on Unipost by Fallprotec is a horizontal lifeline system adapted for green roofs. The solution requires no perforation of the roof membrane, which preserves the waterproof layer and insulation while eliminating the risk of thermal bridges.

Unipost can be used as support for the SecuRope lifeline or as a separate anchorage point for one or two people. The system is designed for horizontal roofs with a pitch of up to 5°. A mat is covered with substrate or gravel, which keeps the solution stable without penetrating the waterproofing membrane, insulation or roof construction. The system thus provides a practical fall protection solution for green roofs where it is important to avoid through-fixings.

Areas of use

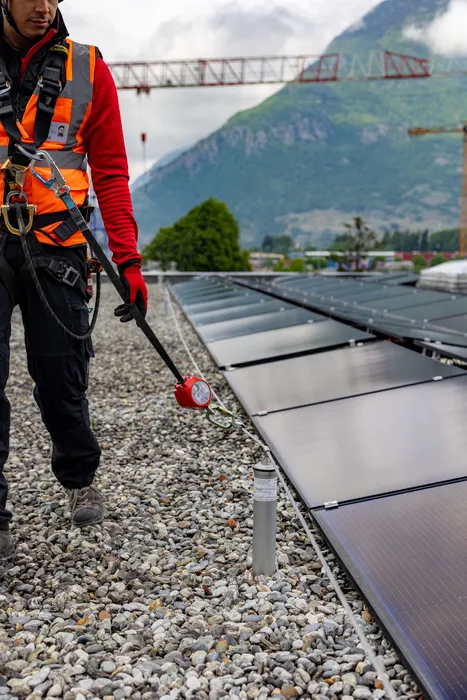

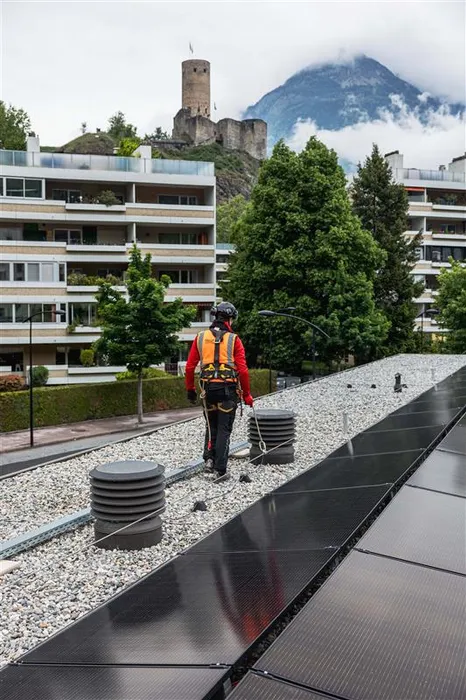

SecuRope Tevo Pro on Unipost is used for fall arrest and fall restraint during green roof maintenance. Specified applications include roofs of commercial buildings, hospitals, educational buildings, monuments, and architecturally distinctive buildings.

Specifications

• Use: Fall arrest and work restraint
• Number of users: Up to 2
• Maximum roof pitch: 5°
• Mounting: Ballasted solution with mat
• Ballast: Substrate or gravel
• Core drilling in roof membrane: No
• Impact on insulation: The insulating properties of the roof are maintained
• Cold bridges: Avoided
• Anchor point: Stainless steel
• Alternative use: Can be used as a separate anchor point
• Freehand
• Compatibility: SecuRope
• Customisation: Project-specific solutions can be developed
• Standard: EN 795:2012 Type C and Type A, CEN/TS 16415:2013

FAQ

Does the roof membrane need to be perforated during installation?

No. The system is installed without through-fixings in the roof membrane, which means the waterproofing layer, insulation and roof structure remain intact.

How is Unipost held in place on a green roof?

The system's mat is covered with substrate or gravel. The weight of the material helps to keep the fall protection solution stable without the need to anchor it through the roof membrane.

Can Unipost be used without a lifeline?

Yes, Unipost can both act as a support for the SecuRope lifeline and be used as a separate anchor point for one or two people.
