C2 Vertical Safety

SecuRope Tevo Pro cable lifeline system on rigid post

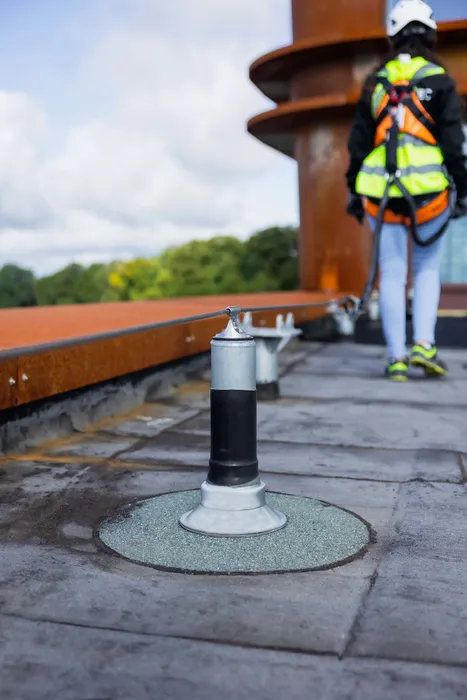

The SecuRope Tevo Pro from Fallprotec is a horizontal wire-based lifeline system on rigid anchor posts. The solution is developed for fixed structures such as concrete and steel, and gives the user great freedom of movement while maintaining connection to the lifeline along the entire system.

The non-deformable posts provide a stable attachment to rigid substructures and are available in heights of 500 or 750 mm. The user can move along the cable and pass intermediate anchors without disconnecting. The system can be used by up to four people simultaneously and is intended for both fall arrest and fall restraint. The posts are manufactured from galvanised steel and are also available in stainless steel upon request. Project-specific attachments can be developed if required.

Areas of use

SecuRope Tevo Pro on a rigid post is used for permanent fall protection on industrial, residential and commercial roofs with rigid load-bearing structures, such as concrete or steel. The system is suitable for both fall arrest and restraint.

Specifications

• Substrate: Rigid structures, for example concrete and steel
• Use: Fall arrest and work restraint
• Number of users: Up to 4
• Freehand
• Design: Non-deformable
• Post material: Galvanised steel
• Alternative material: Stainless steel on request
• Post height: 500 or 750 mm
• Compatibility: SecuRope EVO, SecuRope 2012 and Securail Pro
• Customisation: Project-specific fixings can be developed
• Standard: EN 795:2012 Type C, CEN/TS 16415:2013, ASSP/ANSI Z359.6 and CSA259.16

FAQ

When is the SecuRope Tevo Pro used on a rigid post?

The system is intended for installation on rigid load-bearing structures, such as concrete or steel beams, where a stable raised lifeline is required.

Can the user pass between the intermediate anchors without unclipping?

Yes. The system is designed so that the user can move along the lifeline and pass intermediate anchors while maintaining connection.

What heights are the anchor posts available in?

The posts are available in heights of 500 and 750 mm and are manufactured as standard in galvanised steel.
