SecuRope Neo Pro cable lifeline system overhead

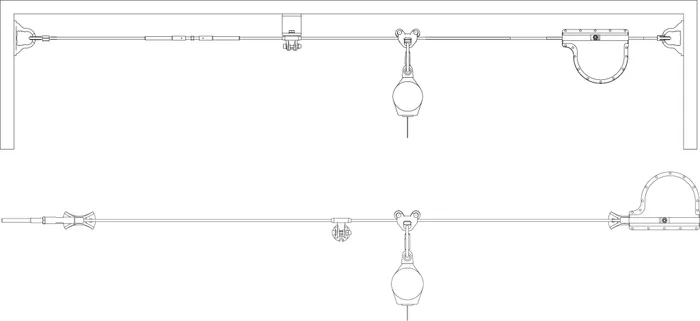

The SecuRope Neo Pro Overhead from Fallprotec is a wire-based lifeline system for installation above the user. The positioning provides fall factor 0 and reduces the potential fall distance, making the system particularly suitable in industrial environments with limited clearance or work above machinery.

The system can be used by up to four people and combined with fall arrest blocks. The runner passes smoothly over the NEO intermediate anchors, which cushion the load in the event of a fall. SecuRope Neo Pro Overhead can also be designed with curves having a minimum radius of 250 mm. The system is recommended for installations where the distance between the lifeline and the walking surface is up to 7 metres and can be installed in corrosive environments.

Areas of use

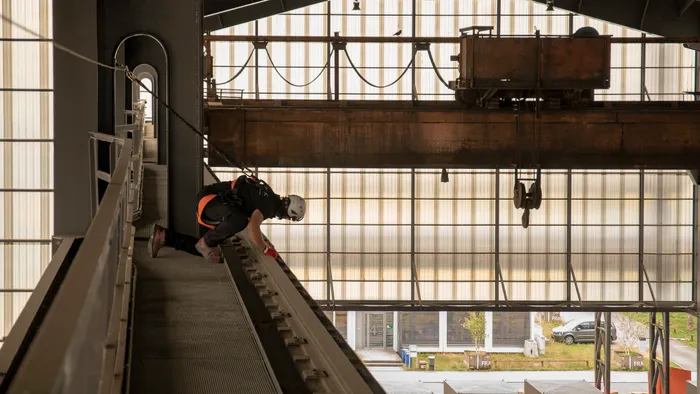

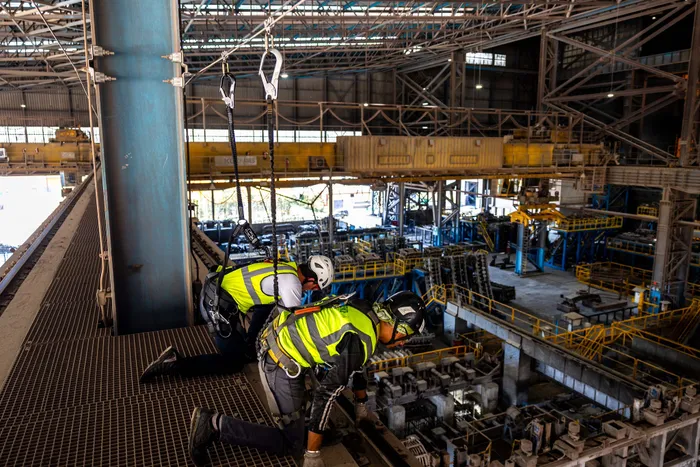

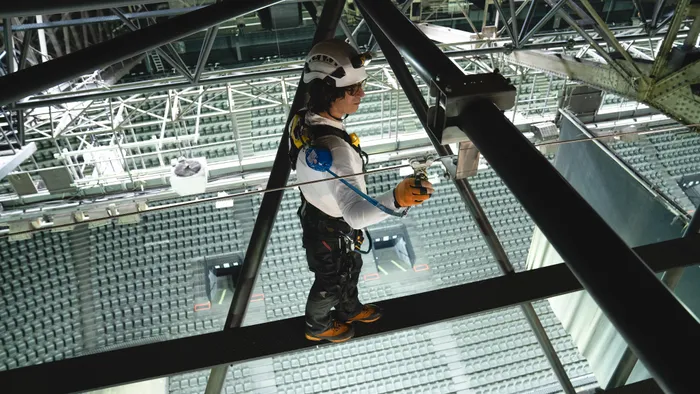

SecuRope Neo Pro Overhead is used for fall arrest and restraint during work in industrial buildings, for example at overhead travelling cranes, as well as during the maintenance of machinery, lorries and trains. The system can also be used for the maintenance of commercial buildings, roofs, monuments and architecturally distinctive buildings.

Specifications

• Manufacturer: Fallprotec
• Installation: Above the user
• Fall factor: 0
• Use: Fall arrest and work restraint
• Number of users: Up to 4
• Freehand
• Design: Non-deformable system
• Curve sections: Yes
• Minimum curve radius: 250 mm
• Energy absorption: Intermediate anchors
• Runner: Passes over NEO intermediate anchors
• Recommended distance between lifeline and walkway: Up to 7 m
• Corrosive environments: Can be installed
• Standard: EN 795:2012 Type C, CEN/TS 16415:2013, ASSP/ANSI Z359.6 and CSA259.16

FAQ

Why is the SecuRope Neo Pro Overhead installed above the user?

The placement provides a fall factor of 0 and reduces the fall distance. This is particularly advantageous where clearance is limited or work is carried out above machinery and other equipment.

Can the SecuRope Neo Pro Overhead be used in conjunction with a self-retracting lifeline?

Yes. The system is designed to be used with retractable fall arrest blocks, while allowing the runner to pass the NEO intermediate anchors.

What industrial environments is the system suitable for?

It is suitable for industrial and production halls, work involving overhead travelling cranes and gantry cranes, as well as the maintenance of machinery, lorries and trains.
