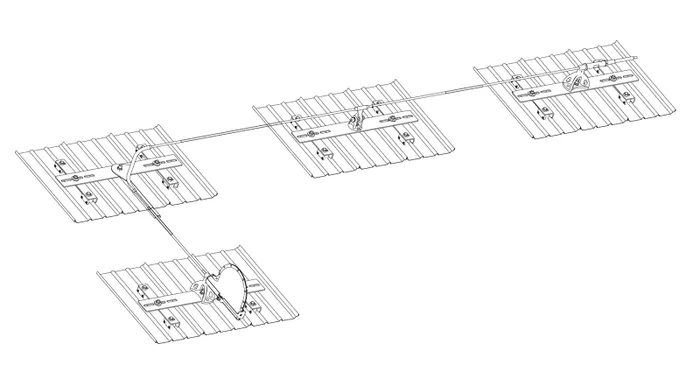

SecuRope Neo Pro cable lifeline system on standing seam roof

SecuRope Neo Pro from Fallprotec is a horizontal wire-based lifeline system for standing seam metal roofs. The system is clamped directly onto the seams without penetrating the roof, which simplifies installation and ensures that the roof's surface layer does not need to be perforated.

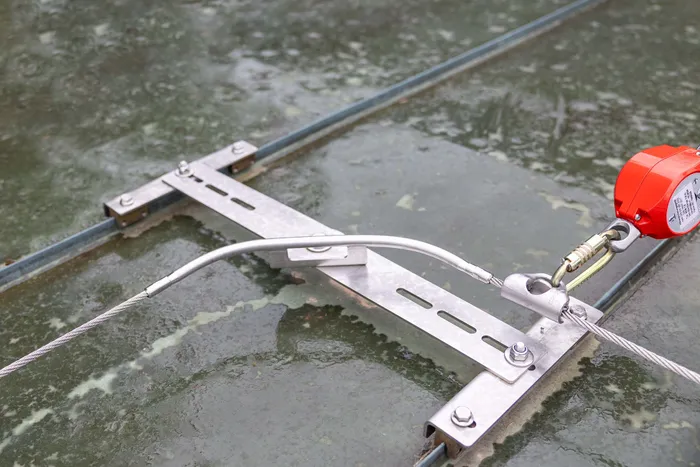

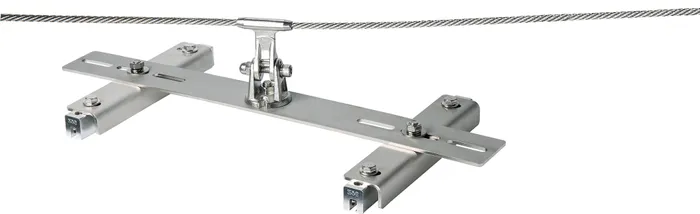

The fixing is done with special clamps that combine high pull-out and shear strength. A wide range of clamps allows the system to be adapted to different types of standing seam, including copper roofs. SecuRope Neo Pro accommodates the metal roof's expansion and contraction during temperature changes and can be installed on both new and existing buildings. The components are made of aluminium and stainless steel, and the system can be used by up to four people.

Areas of use

SecuRope Neo Pro on standing seam is used for fall arrest and fall restraint during maintenance on industrial, residential, airport and commercial roofs. On sloped standing seam roofs, walkway systems are also recommended to facilitate safe movement.

Specifications

• Roof type: Standing seam metal roof
• Number of users: Up to 4
• Freehand
• Fixing: Clips direct to standing seam
• Core drilling: No
• Property: Manages the expansion and contraction of the roof sheeting
• Clips: Multiple options for different types of standing seam
• Material: Aluminium and stainless steel
• Copper roof: Yes
• Installation: New and existing buildings
• Compatibility: SecuRope 2012 and SecuRail Pro
• Use: Fall arrest and work restraint
• Standard: EN 795:2012 Type C, CEN/TS 16415:2013, ASSP/ANSI Z359.6 and CSA259.16

FAQ

Does SecuRope Neo Pro require penetration in standing seam metal roofs?

No. The brackets are clamped directly onto the standing seams of the roof, which means the roof sheeting does not need to be penetrated.

Can the system be installed on different types of standing seam?

Yes. There is a wide range of clamps for different seam profiles, and the system can also be used on copper roofs.

How does the system handle temperature changes in the metal roof?

SecuRope Neo Pro is designed to handle the expansion and contraction that occurs in metal roofs during temperature changes.
