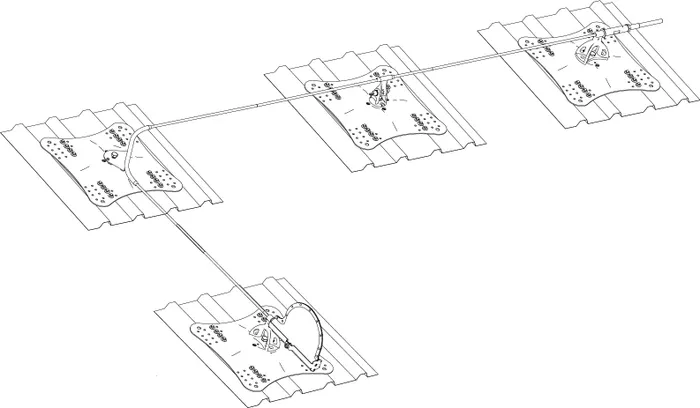

SecuRope Neo Pro cable lifeline system on cold deck

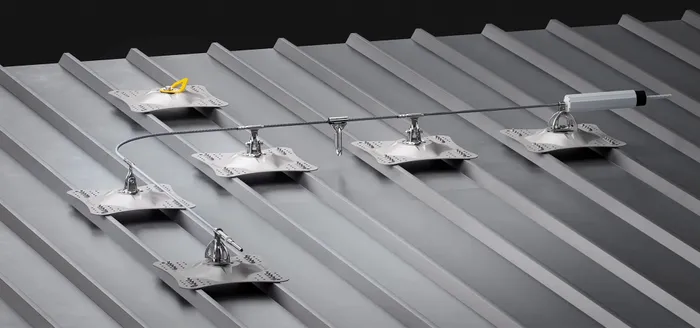

SecuRope Neo Pro on Cold Deck from Fallprotec is a horizontal wire-based lifeline system developed for profiled metal roofs and other sensitive roof structures. The special attachment distributes the load across the roof surface and provides a safe solution for maintenance and service on industrial roofs.

The mounting bracket is adapted for cold decks, sandwich panels and other sensitive metal roofs. The design distributes the load over a larger part of the roof surface and, together with the system's fall-arrest function, helps to reduce the load on the roof structure in the event of a fall. Attachment is made using self-drilling screws or rivets with high pull-out resistance. EPDM sealing tape is included to maintain impermeability during installation.

Areas of use

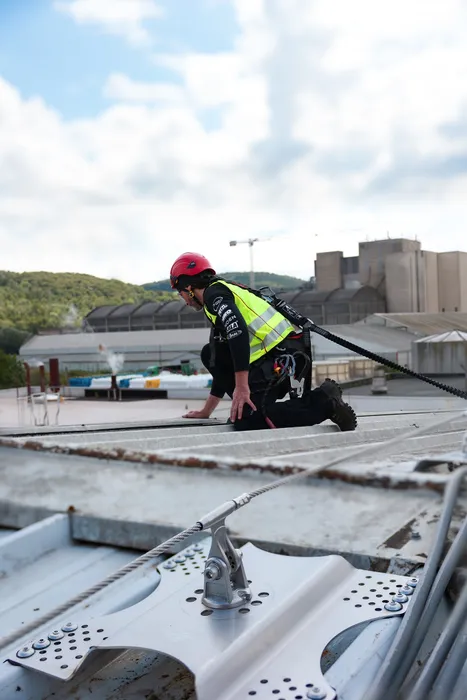

SecuRope Neo Pro on the Cold Deck is used for fall arrest and fall restraint during maintenance and repair work on industrial roofs. The system provides safer access to features such as solar panels, ventilation equipment, skylights and gutters. On delicate profiled metal roofs, walkway systems are also recommended for safer movement.

Specifications

• Roof types: Cold decks, sandwich panels and other sensitive profiled sheet metal roofs
• Number of users: Up to 4
• Freehand
• Fall load: Fall-arrest construction
• Attachment: Special bracket that distributes the load across the roof surface
• Fasteners: Self-drilling screws or rivets
• Sealing: EPDM sealing tape included
• Compatibility: SecuRope, SecuRail and SecuRail Pro
• Use: Fall arrest and work restraint
• Standard: EN 795:2012 Type C, CEN/TS 16415:2013, ASSP/ANSI Z359.6 and CSA259.16

FAQ

Which roofs is the SecuRope Neo Pro on Cold Deck intended for?

The system is developed for profiled sheet metal roofs, including cold deck and sandwich panels, as well as other sensitive roof structures.

How is the load on the metal roof reduced in the event of a fall?

The special mounting bracket distributes the load across the roof surface. Together with the system's fall-arrest function, this helps to reduce the load on the sensitive roof structure.

How is the seal ensured during installation?

The system is supplied with EPDM sealing tape, which is used at the fixing point to help ensure a tight installation.
