SafeLadder Pro vertical fall arrest

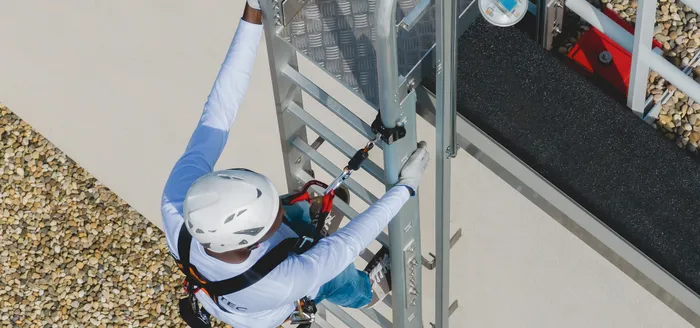

SafeLadder Pro by Fallprotec is a stable access ladder with an integrated vertical fall arrest system for safe access to roofs and other structures. The SecuRail Pro rail is integrated into the ladder and provides the user with continuous fall protection throughout the climb.

The GRANVIA 4 runner connects to the integrated SecuRail Pro rail and smoothly follows the user during climbing. The runner features a fall-arrest function and locks immediately in the event of a fall. SafeLadder Pro is available in several designs, including temporary, telescopic and traversing versions, as well as with a foldable section for confined spaces. Accessories are also available for passing over roof edges. For longer installations, a footrest is fitted every 10 metres.

Areas of use

SafeLadder Pro is used for fall-protected vertical access when working in confined spaces and for the maintenance of industrial and commercial roofs, electricity pylons and wind turbine towers.

Specifications

• Fall protection system: Integrated SecuRail Pro
• Runner: GRANVIA 4
• Runner, function: Follows the user and locks in the event of a fall
• Fall arrest: Integrated in the runner
• Anodised aluminium
• Construction: Rigid and stable ladder
• Brackets: Standard brackets in several lengths
• Footrest: Fitted every 10 metres
• Roof access: Compatible with extensions for safe roof access
• Types: Temporary, telescopic and traversing SafeLadder as well as a version with a foldable section
• Accessories: Roof edge walkway platform
• Traversing version: Can be moved along a SafeAccess rail
• Customisation: Project-specific solutions can be developed
• Standard: EN 353-1:2018, OSHA 1910, ANSI A14-3

FAQ

How does the fall arrest system on the SafeLadder Pro work?

A SecuRail Pro rail is integrated into the ladder. The GRANVIA 4 runner follows the user during the climb and locks instantly onto the rail in the event of a fall.

What versions of SafeLadder Pro are available?

The system is available as, among other things, a temporary and telescopic ladder, with a foldable section for confined spaces, and as a traversing model along a SafeAccess rail.

How does SafeLadder Pro differ from a traditional ladder with a safety cage?

SafeLadder Pro has an integrated rigid fall arrest system that secures the user continuously during the climb and stops any potential fall.
