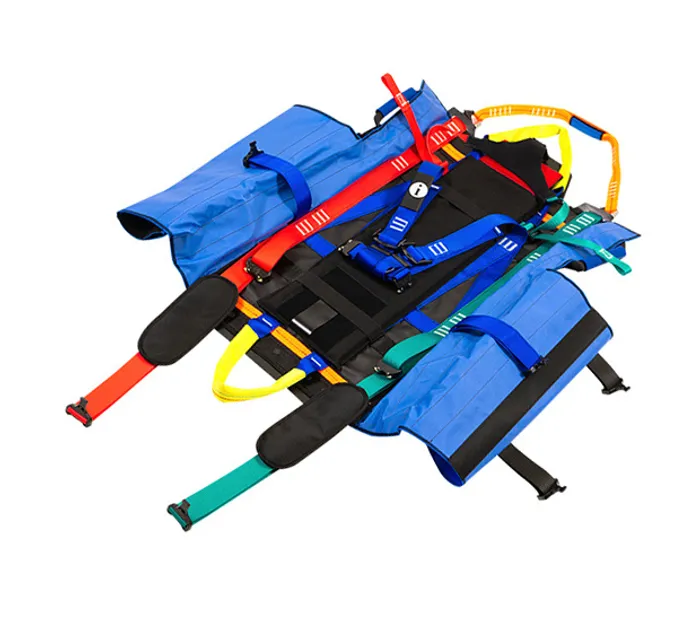

RsqTec TURTLE

The Turtle is a flexible rescue stretcher that combines the functions of a patient stretcher and a rescue harness into one compact system. It has been developed for evacuating and transporting injured persons from confined spaces and other hard-to-reach environments where traditional stretchers can be difficult to use.

The Turtle can be used for both horizontal and vertical transport and is suitable for rescue operations where rapid and safe evacuation is critical. The adjustable suspension system allows for optimisation of the person's position during transport, while the dedicated suspension point at the head end enables vertical lifting and lowering. Thanks to the modular design, the system can be supplemented with accessories to adapt it to different types of rescue missions.

Areas of use

Turtle is developed for rescue in confined spaces, industrial environments, rope access work, and other situations where injured persons need to be evacuated from hard-to-reach places. The system can be used for both rope-based rescue and aerial evacuation.

Specifications

• Nominal load: 140 kg
• Weight: 7.5 kg
• Dimensions (H × L × W): 1100 × 650 × 220–850 mm
• Temperature range: -40 °C to +60 °C
• Suspension: Adjustable for optimal positioning
• Vertical transport: Suspension point in the main end
• Integrated carrying handles
• Expandable with accessories: Yes
• Certifications: DIN EN 1497:2007, DIN EN 1865-1:2015 (point 5.4.1)

FAQ

What distinguishes the Turtle from a traditional rescue stretcher?

The Turtle combines the properties of a stretcher and a harness, offering greater flexibility for evacuation in confined and difficult-to-access environments.

Can Turtle be used for vertical rescue?

Yes, the system has a specific lifting point on the main end that allows for safe vertical transport.

Turtle är utvecklad för internet.

It is specially designed for rescue in confined spaces, industrial environments, rope access work, and other technical rescue operations.
