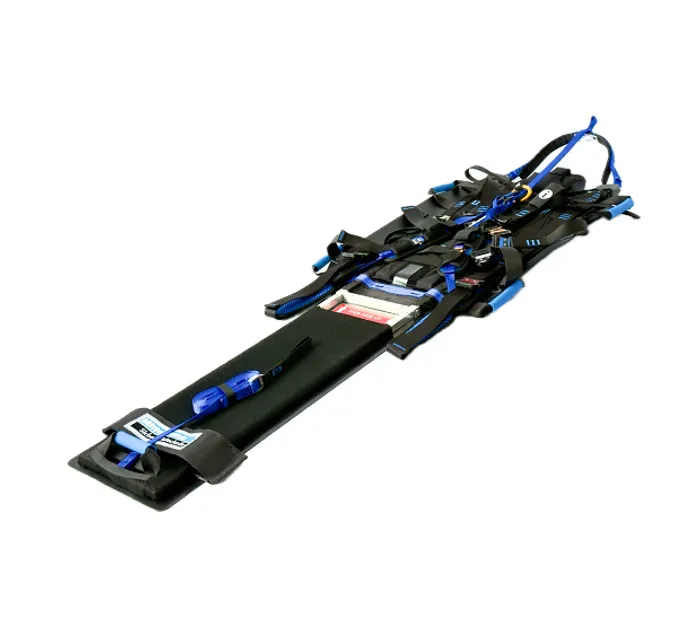

RsqTec TURTLE frameX

The Turtle frameX is a rescue stretcher that combines the advantages of both short and full-length stretchers in a single solution. Thanks to its extendable design, the stretcher's length can be quickly adapted to the situation, while the integrated frame provides maximum stability during transport and rescue operations.

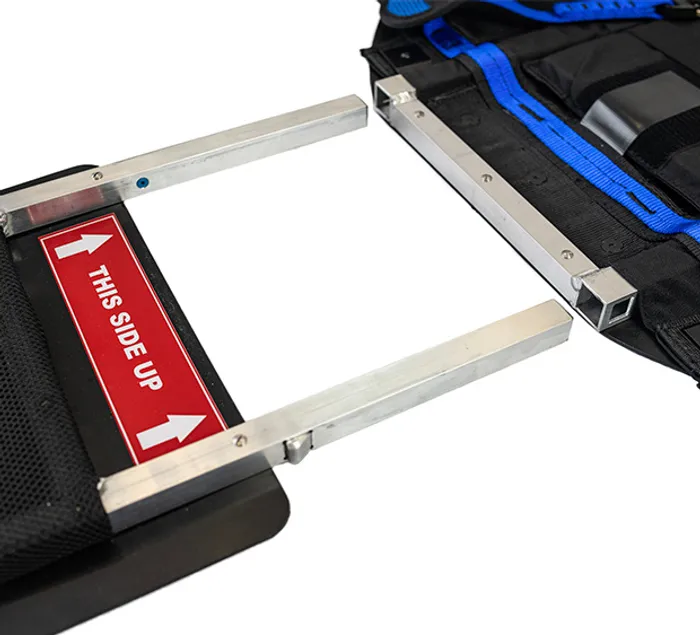

With a simple manoeuvre, the compact short board is converted into a full-length board by attaching the supplied foot section. The lightweight, integrated frame ensures high torsional rigidity without unnecessarily increasing weight. Colour-coded buckles simplify handling, while the lockable suspension enables safe horizontal transport. Furthermore, the suspension system has an integrated head protector, increasing safety during evacuation and transfer.

Areas of use

The Turtle frameX is developed for technical rescue, industrial rescue operations, rope access, confined space rescue, and other situations where a flexible and stable stretcher is required. Its modular design allows the stretcher to be adapted to the transport distance, environment, and rescue scenario.

Specifications

• Integrated frame: Yes
• Extendable construction: Yes, with removable foot section
• Suspension: Lockable for horizontal transport
• Head protection: Integrated into the suspension system
• Buckles: Colour-coded for ease of use
• Handle: On both the stretcher and foot section
• Nominal load: 140 kg
• Weight: 12.5 kg
• Dimensions (L × W): 1200–1870 × 650 mm
• Temperature range: -40 °C to +60 °C
• Certifications: DIN EN 1497:2007, DIN EN 1865-1:2015, ANSI/ASSP Z359.12-2019, CSA Z259.12-16

FAQ

What is the advantage of the Turtle frameX compared to a traditional rescue stretcher?

The Turtle frameX can be used as both a short and a full-length stretcher, offering greater flexibility for various types of rescue operations.

How do you extend the stretcher?

The foot section supplied can be easily fitted to the stretcher, increasing its length from 1200 mm to 1870 mm.

Is the Turtle frameX approved for professional rescue operations?

Yes, the stretcher complies with several international standards for rescue and evacuation equipment, including DIN EN 1497 and DIN EN 1865-1.
