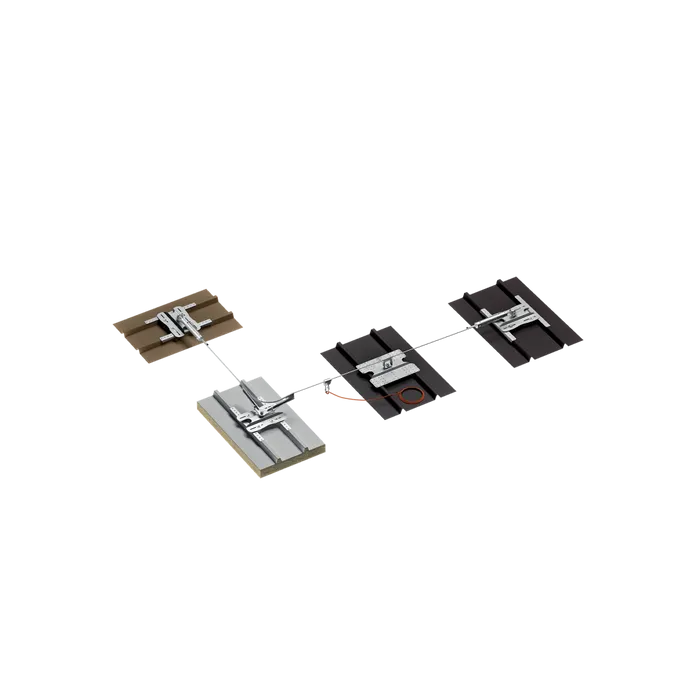

PATROL + SHIELD | SHIELD 2

PATROL + SHIELD and SHIELD 2 are a wire-based lifeline system for trapezoidal steel roofs with or without insulation. The system can be used on roofs with a profile spacing of up to 420 mm and is supplied with seals for a watertight installation.

SHIELD is used as the starting point, end point, or corner point in the PATROL system, while SHIELD 2 is used as a straight intermediate point. Adhesive and sealant are included to maintain tightness during installation. The system can be mounted on both flat and sloped trapezoidal sheet metal roofs and is designed to withstand loads in all directions, 360°.

Specifications

• Roof type: Trapezoidal sheet metal roof
• Insulation layer: With or without insulation
• Maximum profile distance: 420 mm
• SHIELD: Starting point, endpoint or corner point
• SHIELD 2: Straight middle ground
• Ceiling design: Flat and sloping ceilings
• Direction of load: 360°
• Fasteners: Included
• Sealing: Cellgum sealing included

FAQ

What is the difference between SHIELD and SHIELD 2?

SHIELD is used as the starting point, end point, or corner point in the lifeline system. SHIELD 2 is used as a straight intermediate point along the lifeline.

Can PATROL + SHIELD be mounted on insulated metal roofs?

Yes. The system is developed for trapezoidal sheet roofs with and without insulation layers.

What profile distance does the system handle?

PATROL + SHIELD | SHIELD 2 can be installed on trapezoidal sheet metal roofs with a profile spacing of up to 420 mm.
