Rotho Blaas

PATROL ON WALL

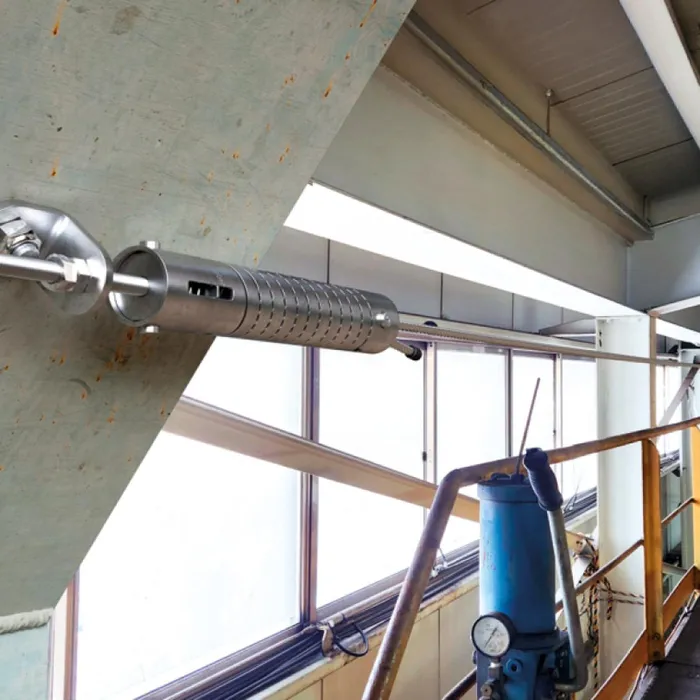

PATROL ON WALL is a wall-mounted lifeline system that is mounted directly onto steel or concrete structures. The system is compact and specifically designed to provide discreet fall protection on facades. It does not look bulky and fits in well in environments where appearance is important.

The system consists of several different parts that enable it to be adapted to various locations and needs. An important part is the sliding runner. It allows the user to move along the lifeline without having to disconnect themselves. This makes it possible to pass both intermediate anchor points and curves without interruption. This is particularly practical on large buildings or where the routes do not run in a straight line.

PATROL ON WALL is built to handle loads from all directions, across all 360 degrees. This means it works well regardless of where the force comes from. It is a secure solution, specially developed for facade mounting.

Specifications

• Maximum number of users: 4
• Installation: On facades and walls
• Substrate: Steel and concrete
• Fixing: Direct to the structure
• Appearance: Low visual impact thanks to compact components
• Can pass between points and curves without disconnecting
• Load: 360°, works from all directions

FAQ

On what surfaces can PATROL ON WALL be mounted?

It can be mounted directly onto steel and concrete. It is the only type of surface that works.

Can the user negotiate curves and intermediate points without unhooking?

Yes. With the right equipment and a running slider, you can move around without having to disconnect from the system.

Is PATROL ON WALL suitable when you want a discreet installation?

Yes. The components of the system are designed to be less visible on the building, so it is a good solution when you want a neat and invisible fall protection solution.
