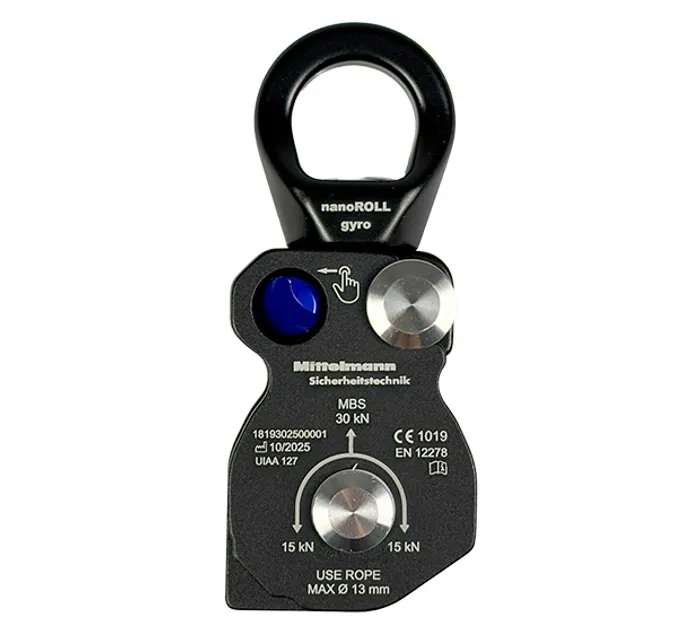

NanoRoll Gyro

The nanoROLL gyro is a compact rescue and rigging pulley with an integrated swivel that provides maximum mobility and efficiency in rope-based systems. The rotating attachment reduces rope twists and ensures optimal load direction when working in rope access, rescue, and technical rigging.

The integrated gyro-swivel allows for free rotation and contributes to smoother system movements under load. Thanks to the swivel-side plate, the rope can be installed quickly and easily, even when the pulley is already attached to the anchor point. The construction minimises the risk of dropping equipment during installation and the two-stage locking system prevents accidental opening under load. Precision ball bearings and a high-strength aluminium construction provide low friction, high efficiency and a long service life in demanding environments.

Areas of use

The nanoROLL gyro is used in elevator systems, directional changes, rescue systems, and other rope-based applications where efficient rope handling and free rotation are important. It is particularly well-suited for rope access, technical rescue, work at height, and advanced rigging.

Specifications

• High-strength aluminium
• Bearings: Precision ball bearings
• Breaking strength: 30 kN
• 30 kN axial load
• 2 x 15 kN lateral load
• Max rope diameter: 13 mm
• Dimensions: 50 × 120 × 36 mm
• Weight: 204 g
• Side plate: Swivelling with two-stage locking mechanism
• Function: Integrated rotary swivel
• Certifications: EN 12278, UIAA 127
• HS Code: 76169990
• ID Number: 181930

FAQ

What is the advantage of the integrated swivel?

The swivel reduces twists in the rope and helps keep the load correctly oriented throughout the system.

Can the rope be mounted without removing the pulley from the anchor point?

Yes, the swivel side plate makes it possible to attach the rope even when the pulley is already connected to the system.

Vilka rep kan användas med nanoROLL gyro?

The pulley is compatible with ropes up to 13 mm in diameter.
