HELIXON-S Retractable fall arrester with polymer casing in galvanised steel

HELIXON-S 7 m is a self-retracting fall arrester with a galvanised steel wire rope and integrated FA 20 EXO 07 exoskeleton for working in both vertical and horizontal environments. The robust construction ensures high operational reliability, low arrest force, and smooth handling.

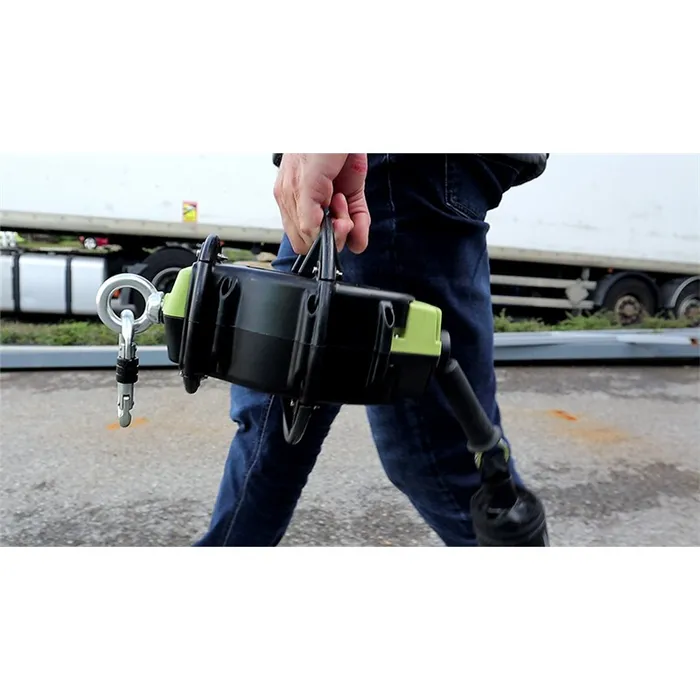

The durable polymer casing is equipped with carrying handles and a removable inspection window which allows access to the internal mechanism for inspection without opening the entire casing. The 4.8 mm galvanised steel wire is fitted with a connector with a fall indicator, a grip handle, and an external fall arrester. An internal braking mechanism limits the arresting force to below 6 kN, contributing to increased user safety. The product is approved for persons up to 140 kg and can be used both vertically and horizontally.

Specifications

• Cable length: 7 m
• Cable: galvanised steel cable
• Wire diameter: 4.8 mm
• Anchoring end: swivel and FA 50 225 23B coupling
• Maximum gripping force: < 6 kN
• Minimum breaking strength: > 12 kN
• Weight: 4.08 kg
• Approvals: EN 360:2002, VG11.060
• Maximum user weight: 140 kg
• Usage: vertical and horizontal

FAQ

What is HELIXON-S 7 m used for?

It is used as fall protection when working at height where the user requires mobility and automatic retraction of the wire.

Can HELIXON-S be used both vertically and horizontally?

Yes, the model is approved for both vertical and horizontal use.

What are the product's safety features?

It has an internal brake mechanism, an external fall arrestor, a clutch with fall indicator, and a construction that keeps the capture force below 6 kN.
