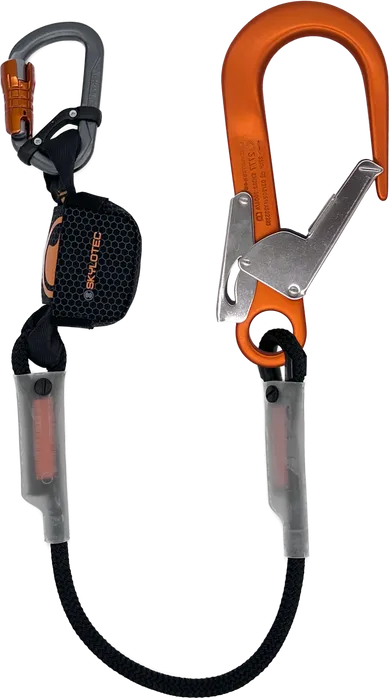

Nanolink I-Lanyard 100 D-EN/FS90 Alu

NANOLINK Lanyard is a energy-absorbing lanyard for users between 50 and 150 kg. The ergonomic energy absorber and durable materials make the lanyard well suited for demanding professional work at height where safety, freedom of movement and durability are important.

NANOLINK is developed for use across multiple industries and has a maximum arrest force of 6 kN. The line has a minimum breaking strength of 22 kN and is constructed from materials including polyamide and aramid for high abrasion resistance. The series is available with various connection options to be adaptable to the task. This version is 1 metre long, equipped with an FS90 ALU connector and features an integrated fall indicator.

Areas of use

The NANOLINK Lanyard is used as fall protection when working in confined spaces, on masts and towers, and on scaffolding, among other things. The compact fall arrester is particularly practical for tasks where good freedom of movement is important.

Specification

• User weight: 50 to 150 kg
• Product length: 1 m
• Rope length: 1 m
• Rope diameter: 11 mm
• Coupling: FS90 ALU
• Fall indicator: Yes
• Rescue loop: No
• Maximum arrest force: 6 kN
• Minimum breaking strength: 22 kN
• Not approved: No
• Material: Steel, aluminium, polyamide, aramid and other materials
• Temperature range: -35 °C to +65 °C
• Maximum lifespan: 10 years
• Wash: Hand wash at 30 °C
• Colour: Orange and black
• Net weight: 2.59 kg
• Standard: EN 355:2002

FAQ

What user weight is the NANOLINK Lanyard intended for?

The energy absorber is developed for users with a weight between 50 and 150 kg.

Is the NANOLINK Lanyard edge-approved?

No. This version is not edge-approved and must therefore not be used in situations where an edge-tested fall arrest lanyard is required.

Does the NANOLINK Lanyard have a fall indicator?

Yes. The lanyard has a fall indicator that helps to identify if the equipment has been subjected to a fall.
