NanoGyro

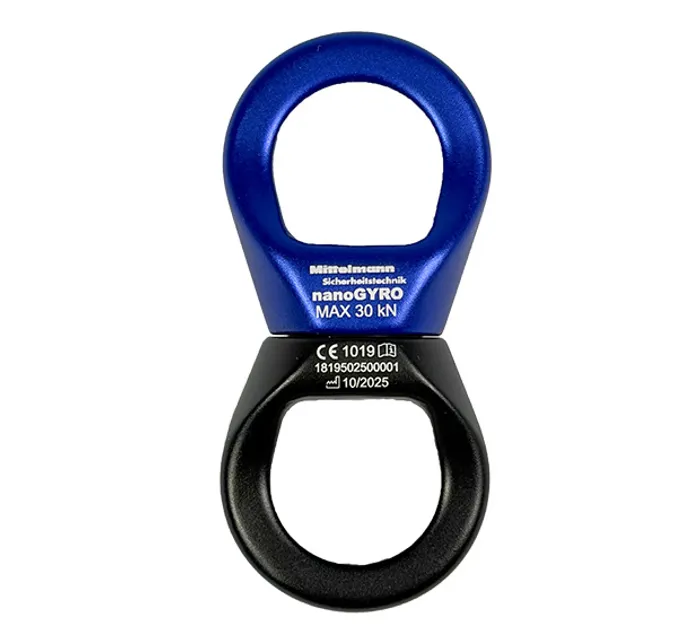

nanoGYRO is a compact and durable swivel that prevents twisting in rope and rigging systems while ensuring optimal load direction. Its low weight, high strength, and smooth rotation make it an excellent choice for professional use in rope access, rescue, and rigging.

nanoGYRO connects two attachment points with free rotation, reducing loads that occur when ropes or equipment twist during use. The backlash-free bearing provides smooth and reliable rotation even under load, while the high-strength aluminium housing combines low weight with high durability. Thanks to its compact design, the nanoGYRO is particularly well-suited for systems where space and weight are important factors without compromising safety.

Areas of use

nanoGYRO is used in rope access, technical rescue, rigging, and other systems where torsional forces can affect equipment function or user freedom of movement. It helps keep ropes and anchor points correctly oriented for smoother and safer work.

Specifications

• Material: High-strength aluminium
• Breaking strength: 30 kN
• Dimensions: 39 × 84 × 25 mm
• Weight: 85 g
• Function: Free rotation between two fixing points
• Bearing: Play-free precision bearing construction
• Certification: PPE-R/11.135 V3:2021
• HS Code: 76169990
• ID number: 181950

FAQ

What is the purpose of nanoGYRO?

It prevents ropes and systems from twisting and ensures the load is held in the correct direction during use.

Can nanoGYRO rotate under load?

Yes, it is designed to provide smooth and reliable rotation even under load.

What applications is nanoGYRO suitable for?

It is designed for rope access, rescue work, rigging, and other professional applications where freedom of rotation and correct load direction are important.
