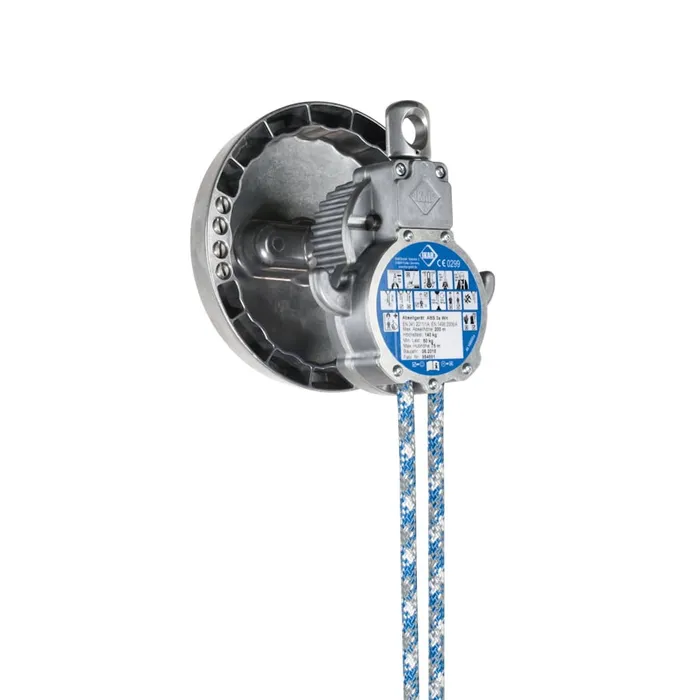

IKAR ABS 3AWH Rescue Lift 10M

The IKAR ABS 3aWH Rescue Lift is a robust and reliable rescue device developed for both active and passive evacuation in emergency situations. It is used as part of a personal fall arrest system (EN 363:2008) and allows to safely lower one or more persons from higher to lower levels with controlled speed and high reliability.

Unlike standard belayers, the ABS 3aWH is equipped with an integrated lifting function with an adjustable back-locking system, which makes it possible to first lift a person out of their harness before lowering. The ball-bearing swivel and the automatic or manually controlled functions make use smooth, controlled and safe in all situations.

• Maximum load: 140 kg (automatic function) / up to 200 kg (manual function)
• Nominal lifting capacity: 140 kg
• Maximum descent height: 200 m
• Descent speed: max 1.5 m/s
• Certifications: EN 341:2011 class A and B, EN 363:2008
